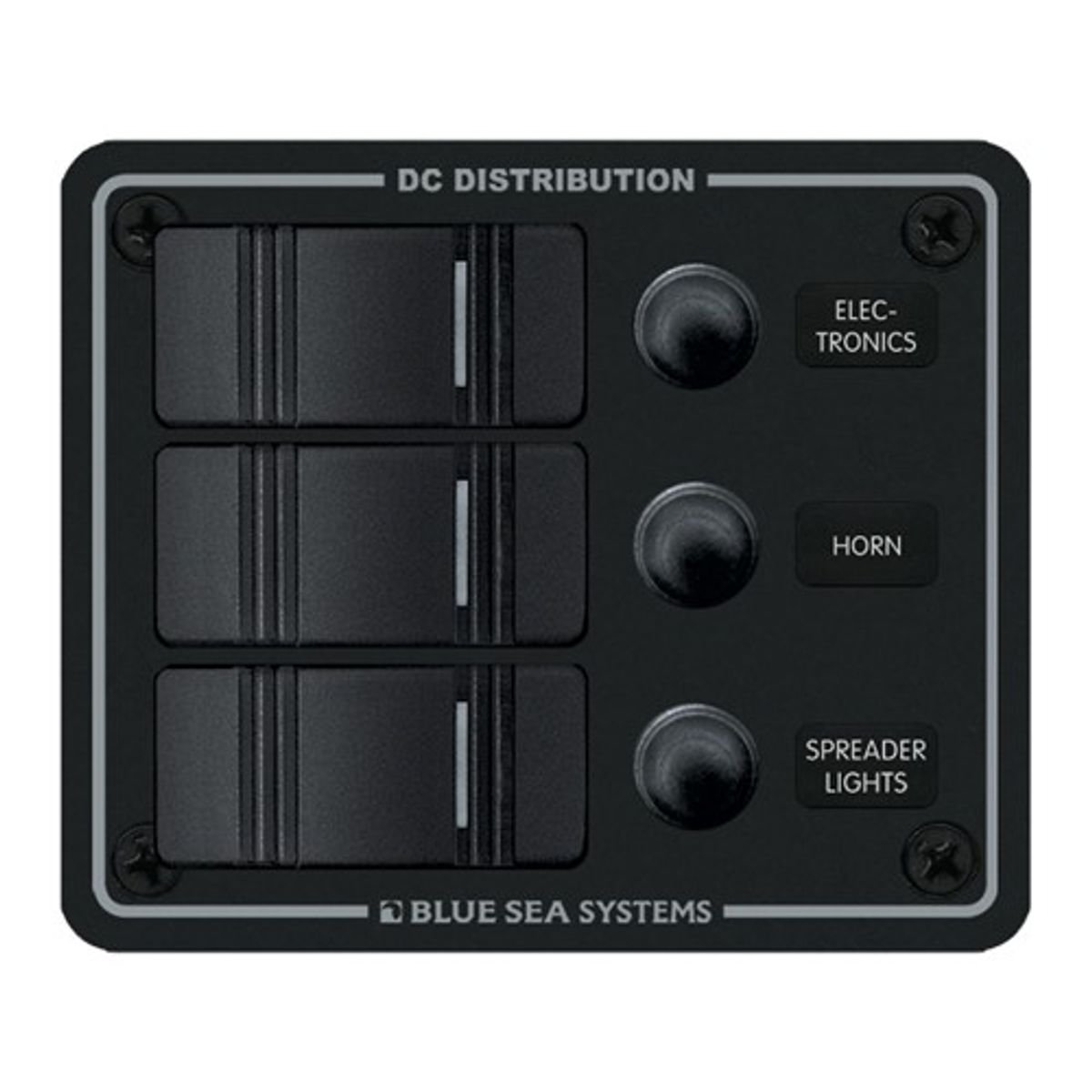

Blue Sea 3- Position IP66 waterproof vertical C/B panel Black

Overview

• Designed for flybridge and open cockpit applications
• Panel front is rated IP66—Protected against powerful water jets
• Ignition protected—safe for installation aboard gasoline powered boats
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switch
• Watertight mounting gasket
• Push Button Reset-Only circuit breakers with waterproof boots

Specifications
Weatherproof	Water Resistant
Positions	3
Nominal Voltage	12V DC 24V DC
Panel Cumulative Rating	45A
Switch Rating	20A @ 12V DC 15A @ 24V DC
Height	3.75in (95.25 mm)
Width	4.50in (114.3 mm)
Depth	3.25in (82.55 mm)
Weight	0.75lb (0.34 kg)
